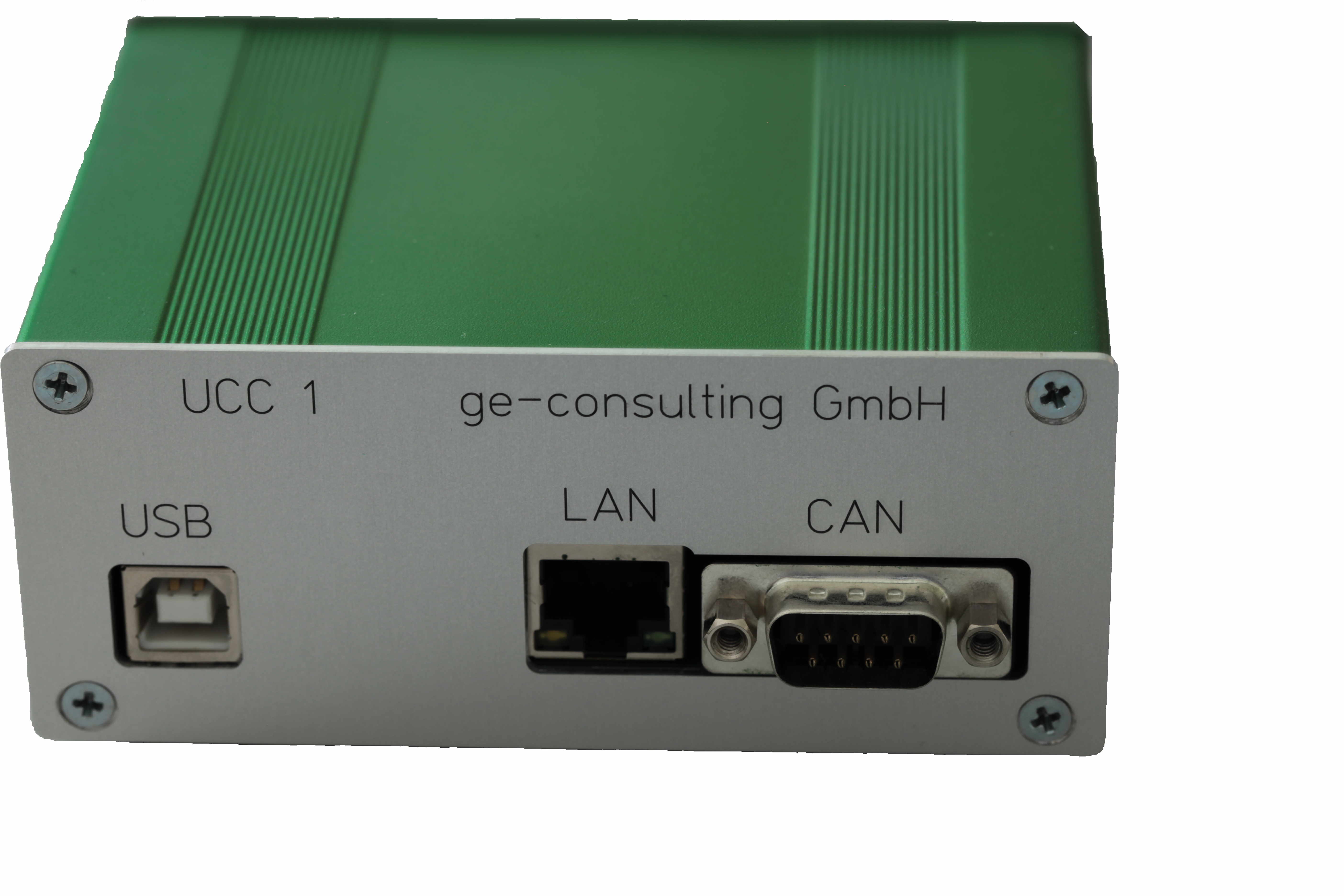

UCC 1, Universal CAN Controller
This device enables direct serial communication with MICBAC compatible CAN bus equipment via USB.
The communication channel is established by a terminal software program like PuTTY, OC-Console or similar. To control any MICBAC compatible equipment, just connect the UCC 1, Universal CAN Controller, via USB to your PC, laptop or tablet and the CAN bus equipment to the UCC 1 device.
Features:
- User configurable to support any CAN bit rate and CAN identifiers
- Supports bit rates from 20Kbps up to 1Mbps
- Supports extended CAN identifiers
- Galvanically isolated CAN interface
- Fully USB powered, no separate power supply necessary
- No device driver installation required
- UCC 1 appears as serial port within the controlling computer's environment
- Supports Microsoft and Linux/UNIX based operating systems
- LAN interface optionally available
- Custom designed graphical test environment on request
Further information or request for quotation at: sales@ge-consulting.de
Acronyms and abbreviations:
- MICBAC: Micro System Bus Access Channel
- CAN: Contoller Area Network
